Equal forces on both ends of the piston
Force connection direct, torque safe
Piston with or without magnets
50% space-savings
Long strokes up to > 5700mm                 Download Cat (.pdf)

Equal forces on both ends of the piston
Force connection direct, torque safe
Piston with or without magnets
50% space-savings
Long strokes up to > 5700mm                 Download Cat (.pdf)

Bore sizes from ø40–63, High resistance to wear

Quiet running, high resistance to dirt & moisture

Tolerances adjustable

High resistance to corrosion                 Download Cat (.pdf)

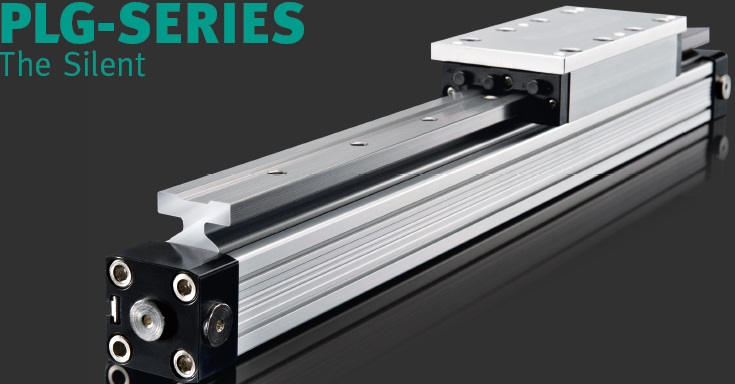

This particular robust linear guiding system for the types PLG 25 and PLG 32 was specially constructed for heavy applications and automation systems.

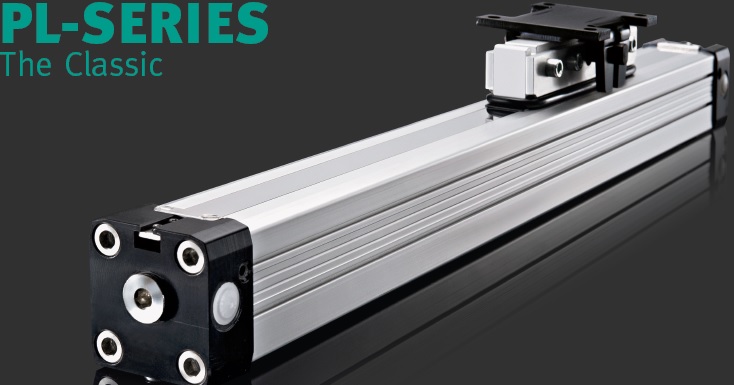

The standard well proven rodless cylinder PL . . is used as the motive force in the bore sizes from ø16– 32. Two guide systems are available for ø25mm + 32mm.        Download Cat (.pdf)

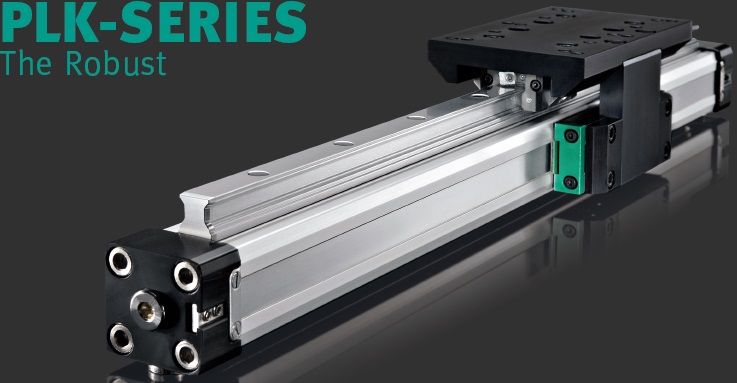

This extremely robust linearsystem from the series PLK 16, PLK 25, PLK 32 and PLK 40 has been especially developed for use in the machine tool and robototics industries. The move force for this guide is our proven rodless cylinder PLF 16–40.

                                                       Download Cat (.pdf)

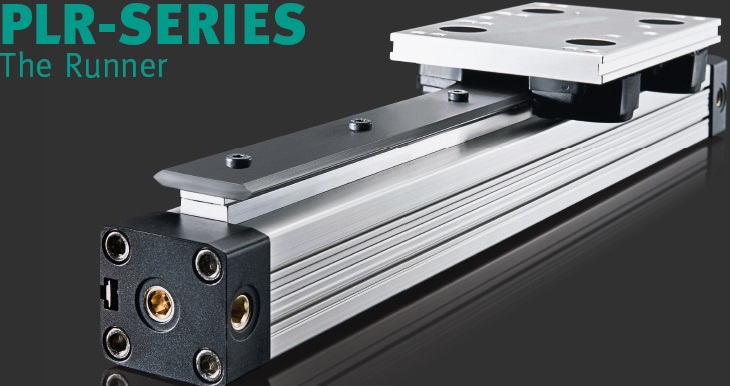

This extremely robust linear system from the series PLR25, PLR32 and PLR40 has been especially developed for use in the machine tool and robotics industries.The force in this guide is from our proven rodless cylinder PLF 25–40. Besides the proven technical aspects of our series rodless cylinder, the following are important performance benefits.    Download Cat (.pdf)

• Solid Steel Spacer Slide with Hard wearing Vee running surfaces
• Aluminium Carriage Plate, Double row bearings for long and            trouble free life
• Fitted cap seals prevent dirt ingress and ensure constant positive lubrication

Superior guiding capacity, stronger forces, higher moments capability.

 Electric Rodless

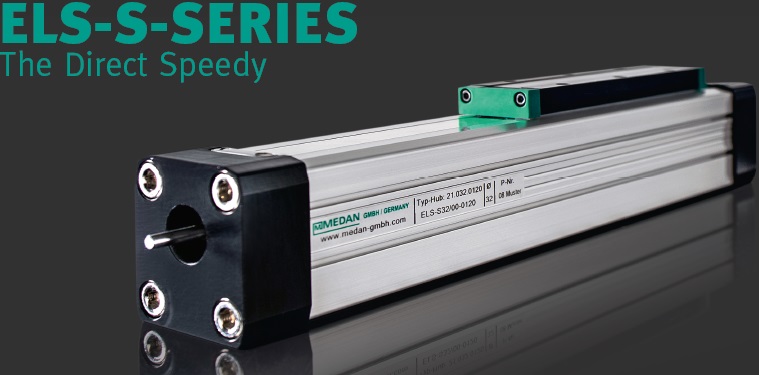

The key elements of the Medan electric spindle actuator ELS-S are the carriage, the spindle and the tube. Customers can specify electric motors made by many different world-wide companies. For standard applications, the ELS-S spindle actuator uses a spindle with a pitch of 12mm, this enables higher speeds to be achieved.            Download Cat (.pdf)

The key elements of the Medan electric spindle actuator ELS-R are the carriage, the spindle and the tube. Customers can specify electric motors made by many different world-wide companies. For standard applications, the ELS-R spindle actuator uses a spindle with a pitch of 2mm, this enables higher speeds to be achieved.

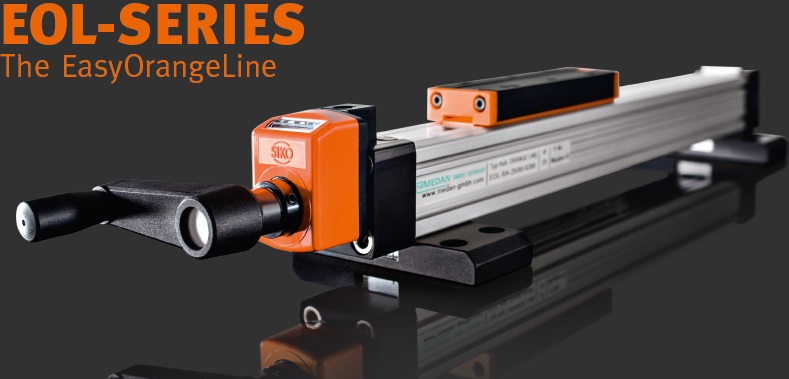

Medan Easy Orange linear unit - is for easy and subordinate altering tasks conceived, however indicated by a simple but effective and solid construction.
The actuator transfers the axial force of the spindle to the transport load by the profile slit to the outside. The anodize aluminium profile of the actuator is locked by end caps on both sides. One of the end caps takes the numerical display while the other end cap is housing the spindle loose bearing. The linear unit is works with a round spindle which has a gradient of 4mm (self-locking). Our long time approved high grade steel covering system protect the internal space from pollution -  independent of its mounting position or construction length.
